Matex's patented design ensures the planets in the Matex planetary gear systems always share equal loads, resulting in 98% efficiency at a single reduction with minimal heat loss and noise. At double and triple stage reduction, efficiency is minimally impacted operating at 95% and 92% respectively. For each additional reduction step, efficiency loss is only about 3%.
The result of an extensive research and development program the Matex industrial planetary gearing system, planetary gearbox and planetary gear sets offer the design engineer unlimited performance possibilities.
- Home
- >
- LGH Gearhead Type
- >
- LGH75
- >
- LGH75-9SMA15
LGH75-9SMA15
Category: LGH75
| Request Quote | Quantity |

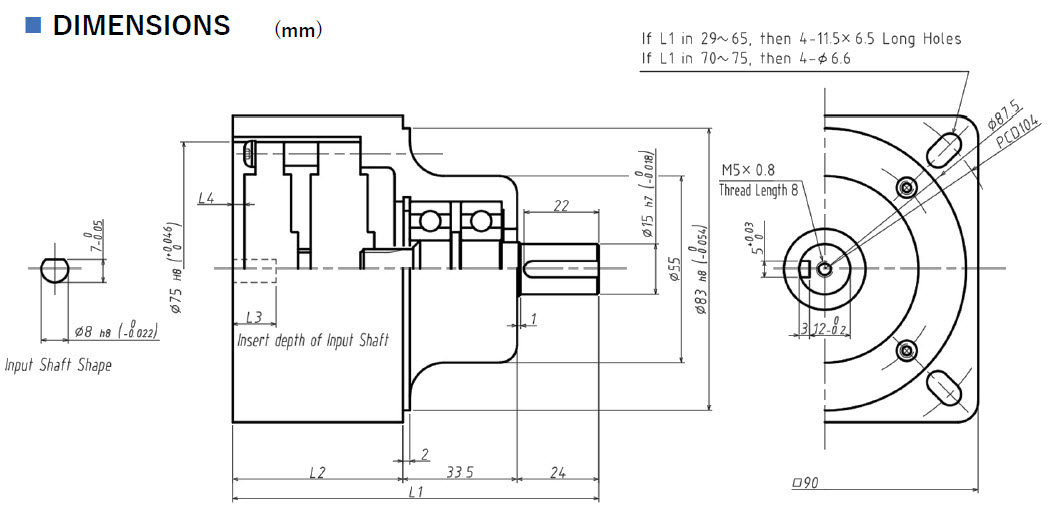

Line Drawing - Click to Enlarge
Product Details
| Series | LGH75 |
| Model Name | LGH75-9SMA15 |
| Nominal Speed Reduction | 9:1 |
| Actual Speed Reduction | 9.3:1 |
| Maximum Output Torque (Nm) | 16.7 |
| Weight (g) | 1360 |
| L1 | 107.5 |
| L2 | 50 |
| L3 | 17.0 |
| L4 | 5.0 |
| Documentation | |
| PDF Catalog | LGH75-35.pdf |
| Full Catalog | Matex Full Catalog English.pdf |
| Design Guide | Design Guide.pdf |
| Type and Classification | Type and Classification.pdf |
The graphic below is a breakdown of each portion of our product numbers for our planetary gears. The structure of the product numbers is derived from different measurements. The graphic below explains what each section means, or feel free to watch our video explanation.
